EC-102 (Low to Medium Speed Robotic Palletizer)

EC-102 was released as next generation model and designed to meet both high speed and heavy duty applications. It will be able to cover wide range of production requirement most economically.

Enquire Now

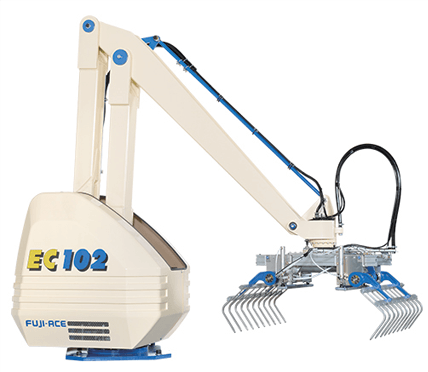

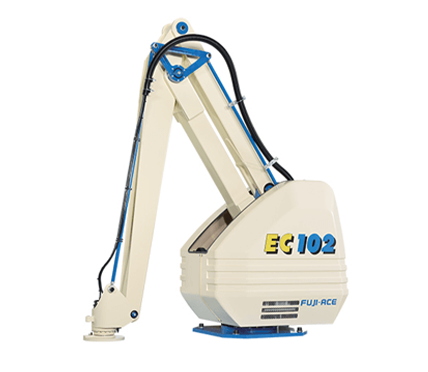

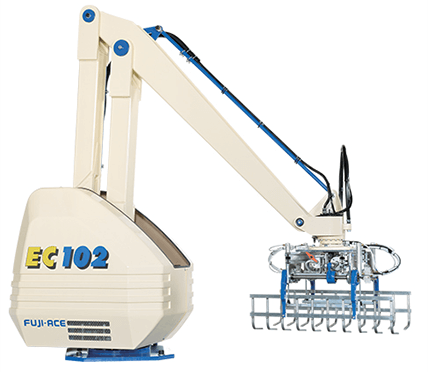

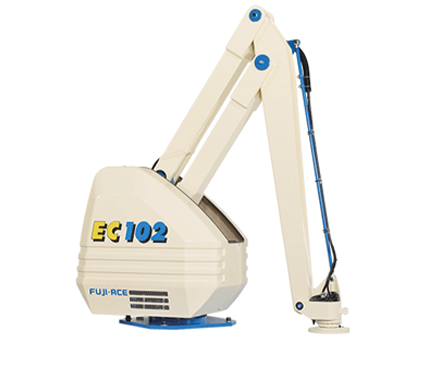

Fuji ACE Model EC-102
Type of Motion Multi-Articulated
Action Mode Cylindrical
Load Capacity(Including End Effector) 160kg(340lbs)
Palletizing Capacity (cycles / hour) 1200
Degree of freedom 4 axis
Operating Area Z axis (vertical) 2300mm(90.5")
R axis(longitudinal) 1500mm(59")
Theta axis (rotation) 330°
Alpha axis (Wrist) 330°
Repeatability ±0.1mm
Memory 120-400 Programming locations available
Teaching method Teaching playback / Teaching Support
Power Requirements (200/220v,3Phase,50/60 HZ)
Power Consumption (Without Peripheral Equipment Load) 3.5KVA / 9.2amps
Robot Weight(Without End Effector) 700kg (1544lbs)
Pneumatic Consumption (*Using Standard fuji Case or Bag End Effector) *5.7SCFM @ 70psi(0.5MPa)
Note: Capacity rates can be significantly affected by layouts. product types,and can be confirmed after a detailed analysis of an application.

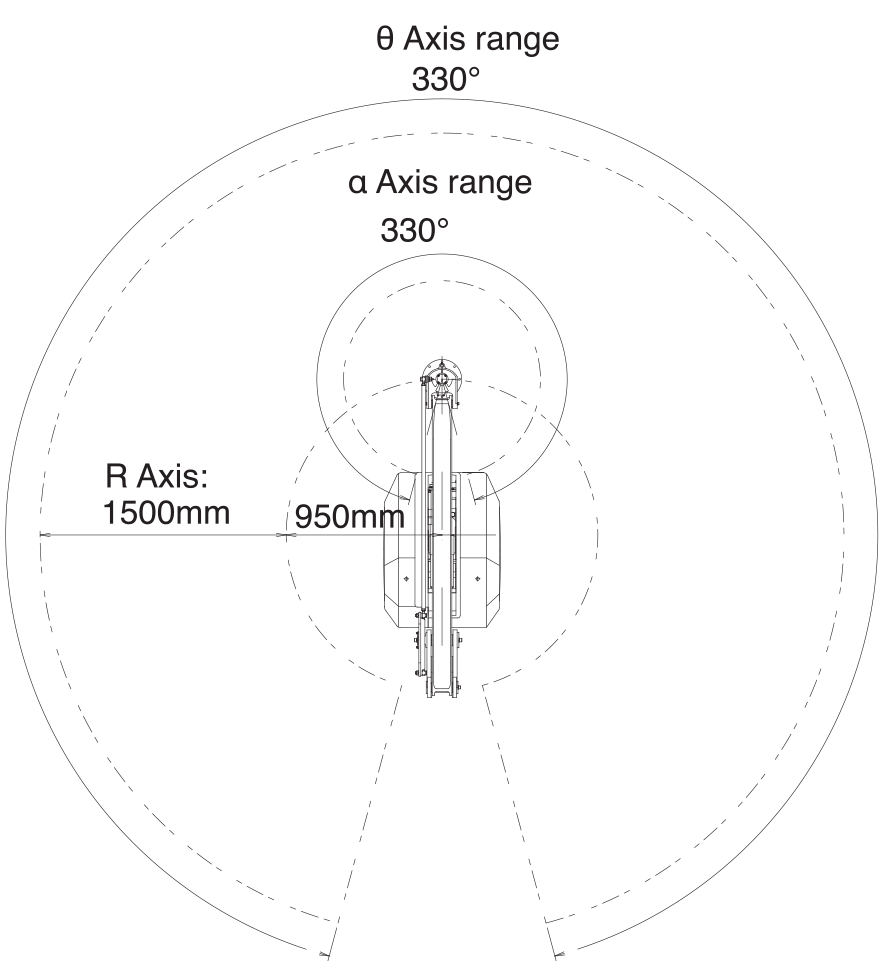

product-ec-201-operating-range2

We are helping to solve various problems related to material handling / logistics equipment / industrial robots. Please do not hesitate to consult us.
